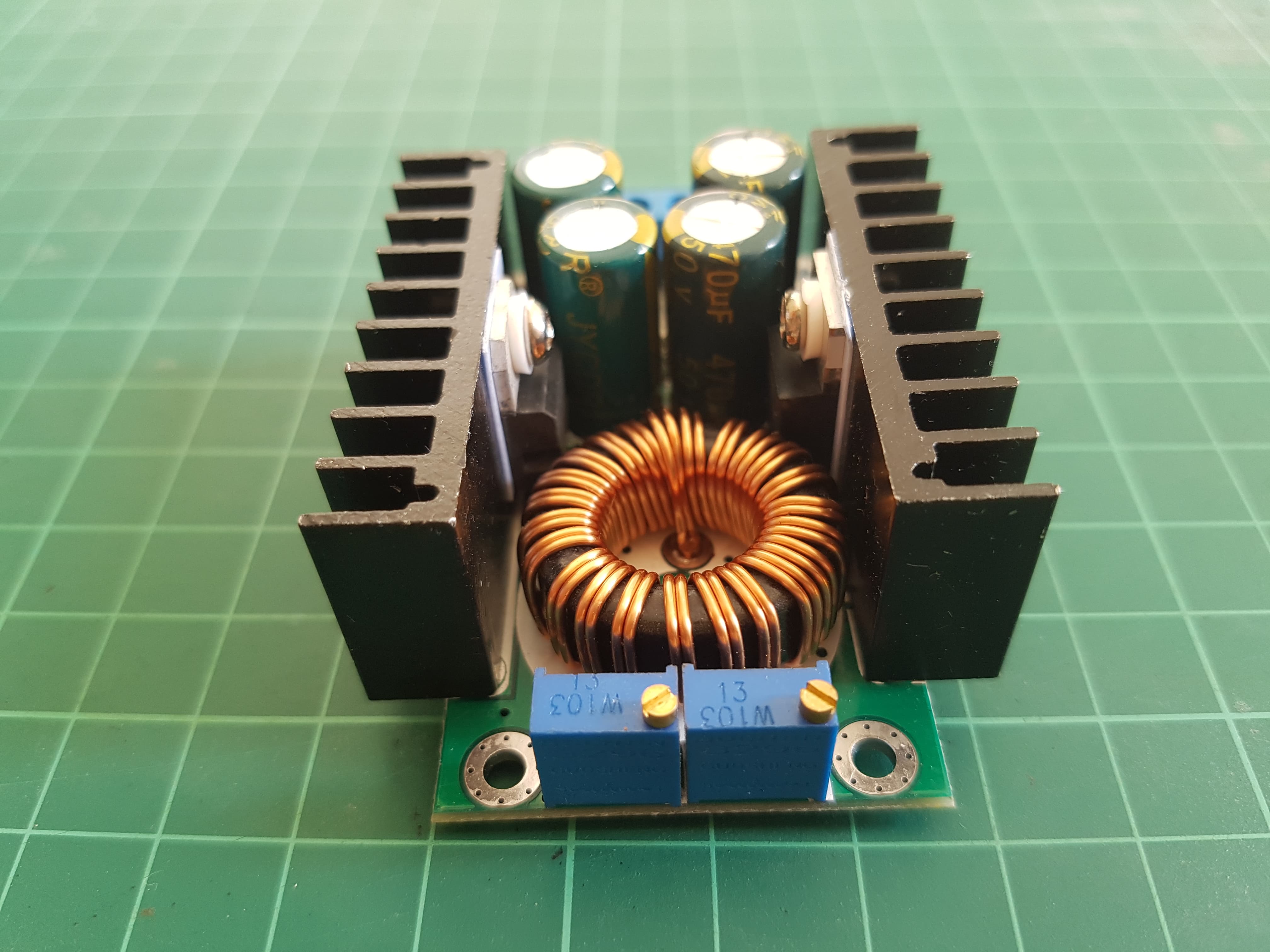

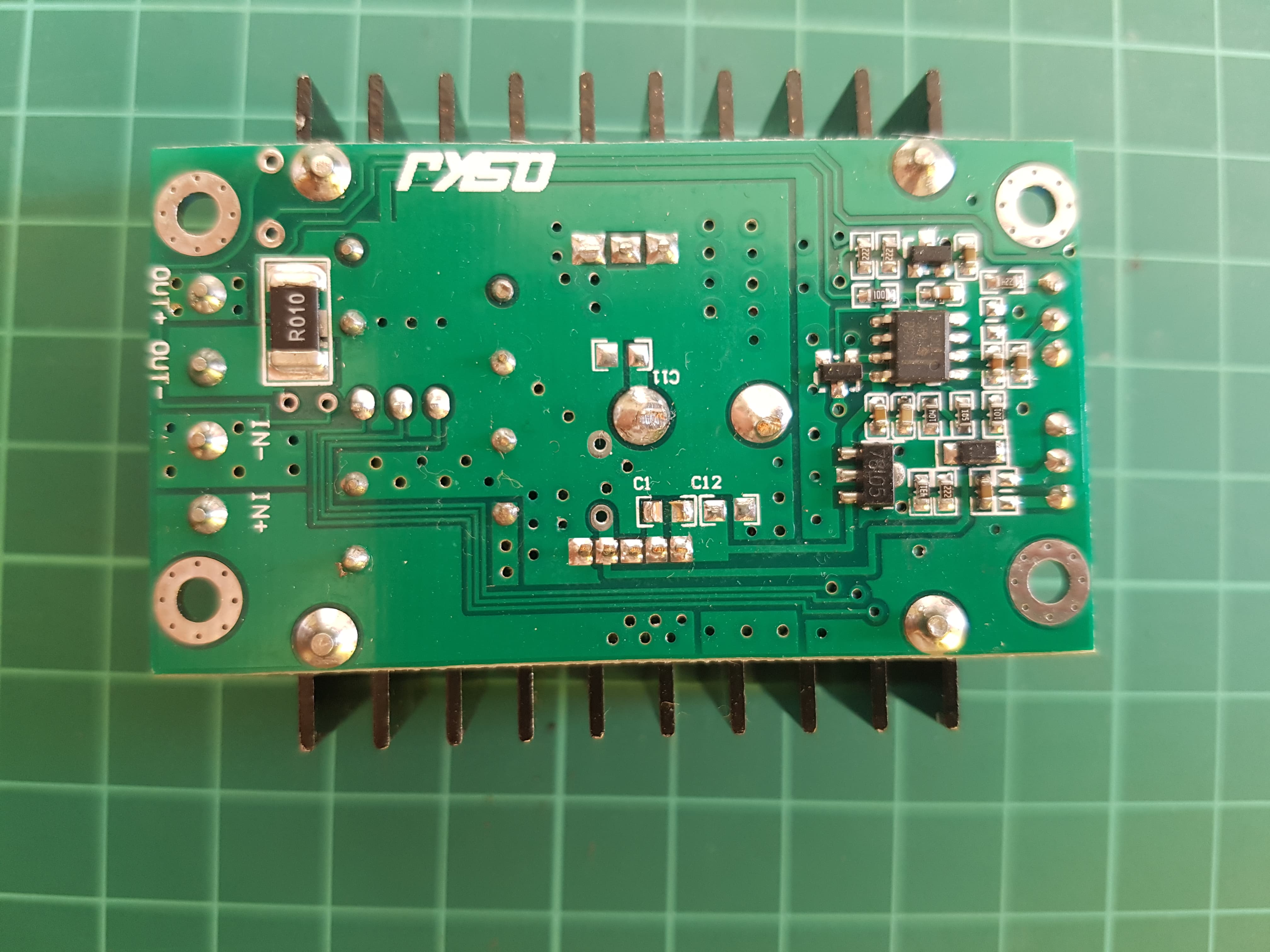

XL4016 CC-CV Converter

Features:

• 1. Fixed turn lamp current is 0.1 times the current value ( Used to identify whether the battery is fully charged When charging).
• 2. Made from a dedicated benchmark IC and high-precision current sensing resistor, proving a more stable constant current, (when 20 °c to 100 °c constant current 1A, temperature drift less than 1%).
• 3. High output current, the max output current can reach 8A.
• 4. Four high frequency capacitance, can lower output ripple, enhance the work stabilization.

Specifications:

• Module Properties: non-isolated step-down constant current, constant voltage module (CC CV) charging module
• Input voltage: DC 8-40V
• Output voltage: DC 1.25-36V continuous adjustable
• Output Current: 0-8A (when power tube\'s temperature exceeds 65 degrees, please add cooling fan)
• Turn lamp current: constant current value * ( 0.1 ) , turn the lamp current and constant value linkage, such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A) .
• Lowest pressure: 1V
• Output Power: Maximum power is about 300W
• Conversion efficiency: up to about 95%
• Operating frequency: 180KHZ
• Output ripple: 20M bandwidth
• Input 24V Output 12V 5A ripple around 50mV (Excluding noise)
• Output short circuit protection : Yes, constant current
• Input Reverse Polarity Protection: None
• Output prevent backflow: None

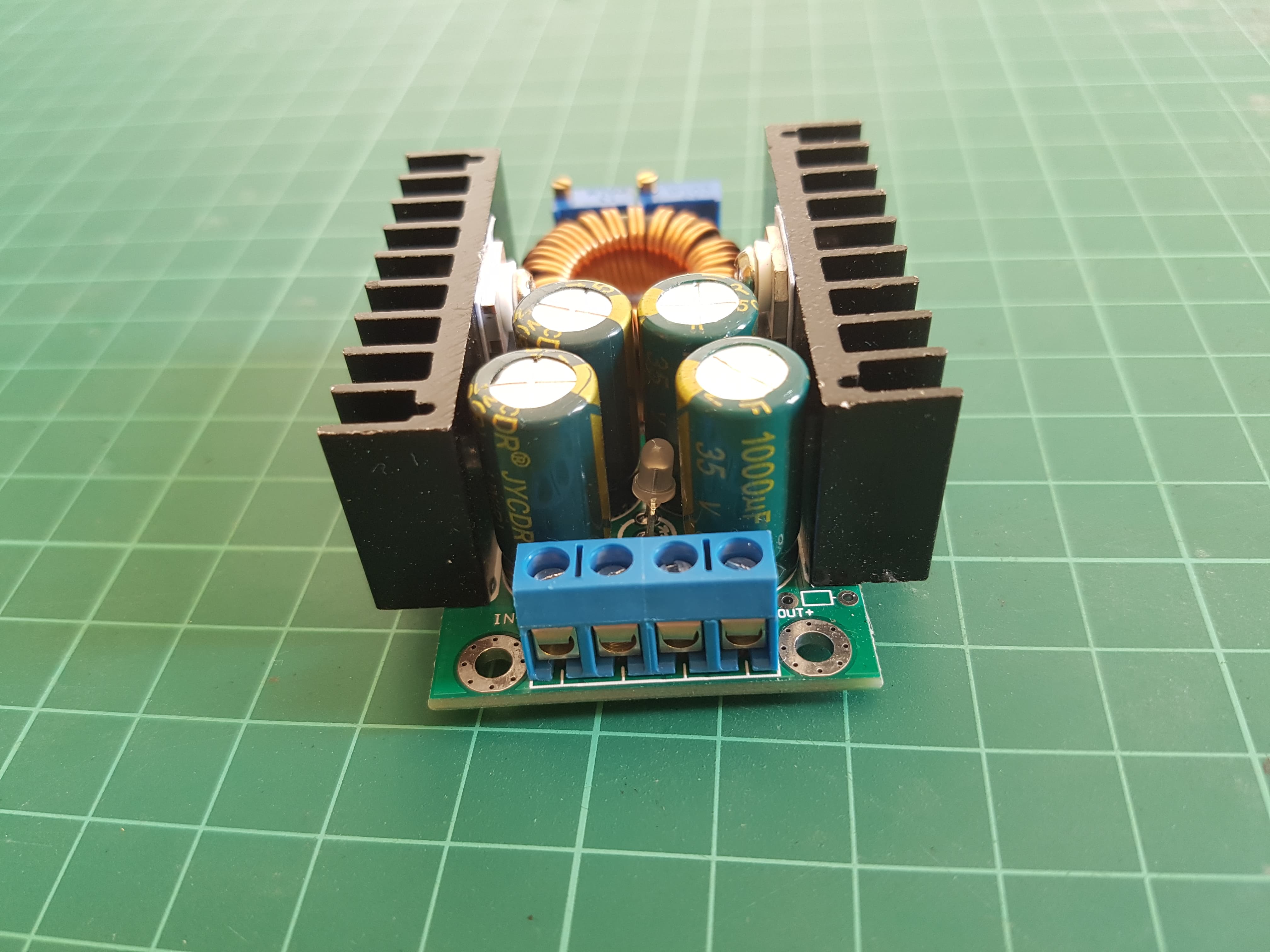

• Wiring: Terminal
• No-load current: Typical 20mA (24V switch 12V)
• Load regulation: ± 1% ( constant )
• Voltage regulation: ± 1%
• Dynamic response speed: 5% 200uS
• Potentiometer adjustment direction: clockwise (increase) , counterclockwise (decrease). the potentiometer (CV) closed to the input voltage is used to regulate voltage, the potentiometer (CC) closed to output voltage is used to regulate current (CC)
• Operating temperature: Industrial grade (-40 °c to +85 °c) ( please note the actual use of the power tube temperature , high temperature heat agreed please )
• Indicator: dual color indicator, charging indicator light is red, the green light means fully charged ( No load is green )
• Size(approx): 65 x 47 x 22mm (L x W x H)

Battery charge

• 1. Make sure of the battery float voltage and charging current that you need, as well as the input voltage of the module.
• 2. Adjust the constant voltage potentiometer and adjust the output voltage to about 5V.
• 3. Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make the output current to the expected charging current value.
• Adjust the constant voltage potentiometer to make the output voltage reaches the float voltage.
• 5. Connected to the battery, try to charge.
• (1,2,3,4 steps to connect the power module input,output no-load does not connect battery.)

LED constant current drive

• 1. Make sure the operating current and Max operating Voltage of the LED you need to drive.

• 2. Adjust the constant voltage potentiometer, adjust the output voltage to about 5V.

• 3. Use the multimeter in 10A current scale to measure output short-circuit current, and adjust the current potentiometer to make sure the output current to the expected LED operating current.

• 4. Adjust the constant voltage potentiometer to make the output voltage reach the maximum LED operating voltage.

• 5. Connect LED, test.

(1,2,3,4 steps to connect the power module input, output No-load does not connect LED.)
