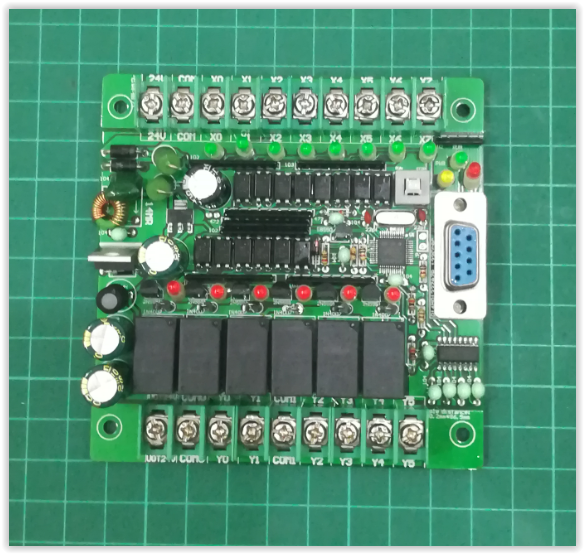

รายละเอียดสินค้า FX1N-14MR บอร์ด PLC สำหรับเขียนโปรแกรมควบคุมการทำงานของอุปกรณ์ไฟฟ้า เช่น Relay , Solenoid Valve , Pilot Lamp , Magetic และ อุปกรณ์อื่นอื่นอีกมากมาย และในส่วนของสัญญาณอินพุติ เช่น Reed Switch , Photo Switch , Pushbutton , Selector และอุปกรณ์อื่นอื่นอีกมากมาย ที่ให้สัญญาณ เป็น Low และ High โดยมีรูปแบบการเขียนโปรแกรมด้วยภาษา Ladder ซึ่งมีความไกล้เคียงกับแบบวงจร ควบคุมไฟฟ้า ทำให้ผู้ใช้งานทำความเข้าใจได้ไม่ยาก จึงเหมาะสำหรับนำไปประยุกต์ใช้ในงานควบคุมไฟฟ้า
ใช้ไฟเลี้ยง |
12 - 24 |
VDC. |
จำนวน INPUT |
8 |
Point |
จำนวน OUTPUT |
6 |
Point |
จำนวน ANALOG INPUT |
- |
Point |
|
|
|
Internal Data |
|
|
Auxiliary Relay (M) |
M0 - M383 |
384 Point |
Auxiliary Relay (M) |
M384 - M1535 |
1152 Point |
State & Option Relay (M) |
M8000 - M8255 |
256 Point |
State Relay (S) |
S0 - S9 |
10 Point |
State Relay (S) |
S10 - S1999 |
990 Point |
Timer 100ms (T) |
T0 - T199 |
200 Point |
Timer 10 ms (T) |
T200 - T245 |
46 Point |
Timer 1 ms (T) |
T246 - T249 |
4 Point |
Timer 100 ms (T) |
T250 - T255 |
6 Point |
Counter 16 Bit (C) |
C0 - C215 |
16 Point |
Counter 16 Bit (C) |
C16 - C199 |
184 Point |
Counter 32 Bit (C) |
C200 - C219 |
20 Point |
Counter 32 Bit (C) |
C220 - C234 |
15 Point |
Data Memory (D) |
D0 - D127 |
128 Point |
Data Memory Holding (D) |
D128 - D1999 |
1872 Point |
Data Memory State & Config (D) |
D8000 - D8255 |
256 Point |
Pointer Index (Z) |
Z0 - Z7 |
8 Point |
Pointer Index (V) |
V0 - V7 |
8 Point |
Pointer Sequence (P) |
P0 - P127 |
128 Point |
Constant 16 Bit ( K , H ) |
-32768 To +32767 |
0x0 - 0xFFFF |
Constant 32 Bit (K) |
-2147483648 To +2147483648 |
0x0 - 0xFFFFFFFF |
|
|
|
Instruction Support
Basic Instructions |
LD, LDI, AND, ANI, OR, ORI, OUT (OUTT, OUTC), SET, RST, ANB, ORB, MPS, MRD, MPP, INV, LDP, LDF, ANDP, ANDF, ORP, ORF, RET, OUTM, SETM, RSTM, OUTS, SETS, RSTS, PLS, PLF, MC, MCR, PI, END. |
|
Contact Comparison Instructions |
LD>=, LD<=, LD>, LD<, LD<>, LD=, AND>=, AND<=, AND>, AND<, AND<>, AND=, OR>=, OR<=,OR>,OR<,OR<>,OR=, |
|
Transfer and compare instructions |
MOV, DMOV, CML, XCH, BCD, DBCD, BIN, DBIN, CMP, ZCP, SMOV, BMOV , BCD , |
|
Arithmetic instructions |
ADD, SUB, MUL, DIV, INC, DEC, WAND, WOR, WXOR, NEG. |
|
Arithmetic (32 Bit) instructions |
DADD,DSUB, DMUL, DDIV, DINC, DDEC, DWAND, DWOR, DWXOR, NEG. |
|
Cyclic shift instructions |
SFTR, SFTL,SFWR,SFWL |
|
Data processing instructions |
ZRST, DECO, ENCO |
|
Program flow instructions |
CJ, CALL, SRET, IRET, EI, DI, FEND. |
|
High-speed processing instructions |
- |
|
Positioning instructions |
- |
|
Clock operations |
- |
Dimension 97 mm x 92 mm x 25 mm.Wiring Diagram Example

|
